V Pack 1 Series
1-SERIES VAN-PACK JETTER

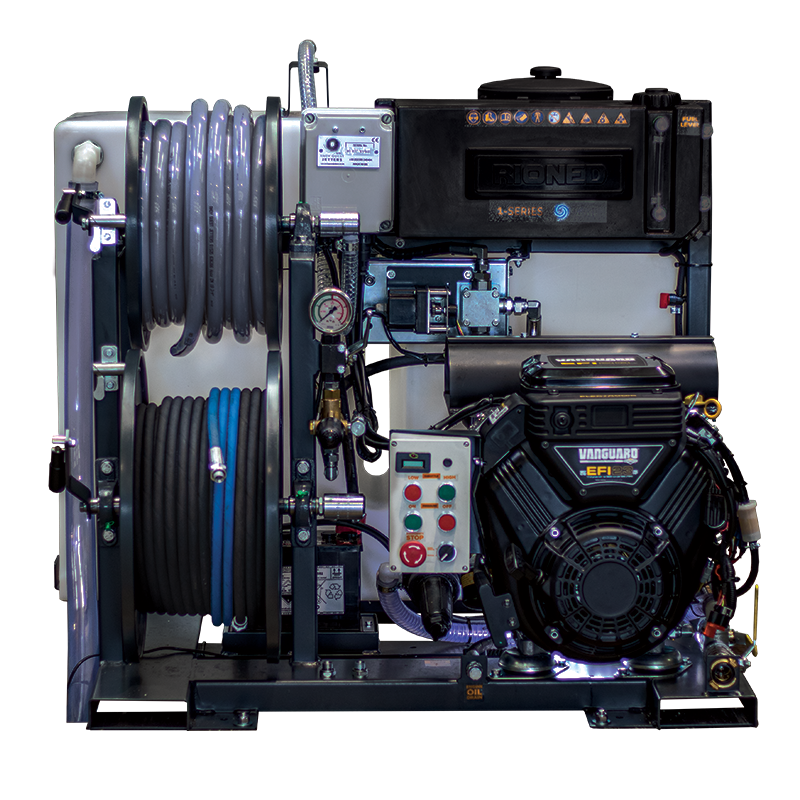

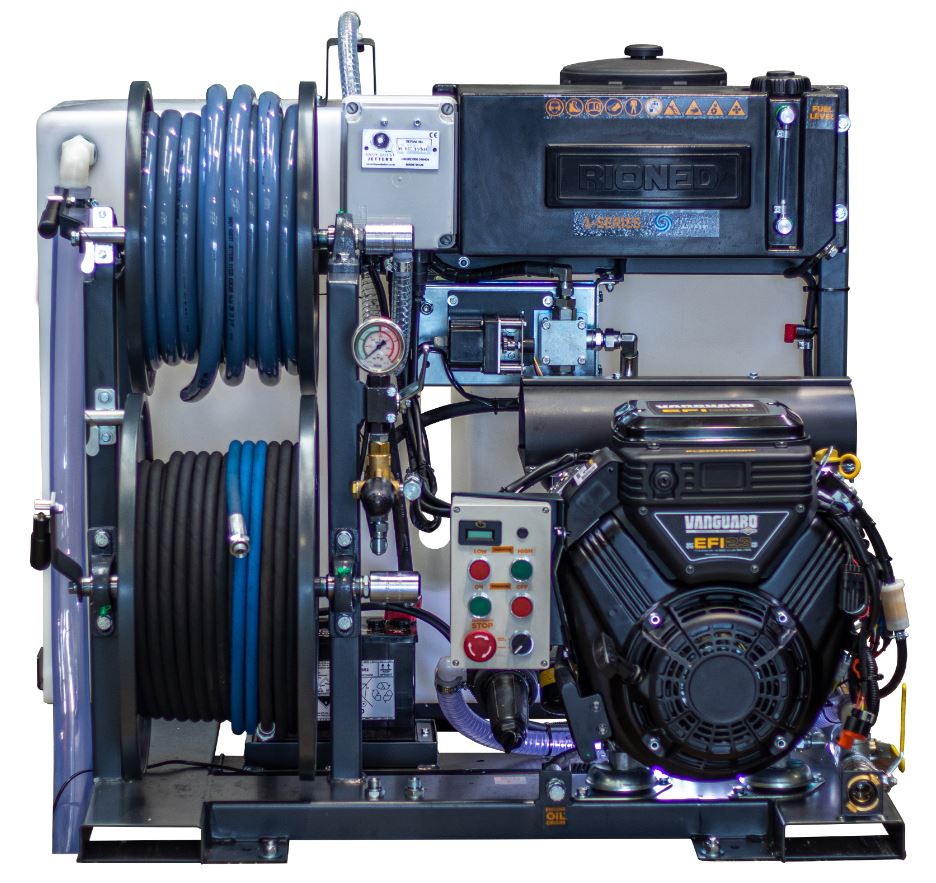

The 1-Series high-pressure jetting machine can be installed in the smallest commercial vans due to a dry weight of under 250KG.
Developed with the performance and specification of much larger jetting machines, this compact powerhouse is the ultimate low-cost solution for domestic drainage and cleaning contractors and large scale users. Safety was a key aspect in the design of the 1-Series, with the inclusion of automatic HP pump protection and engine revs reset; features not usually available at this price point.
Powered by an emission compliant, fuel-injected 23HP V-Twin OHV petrol engine, the 1-Series offers maximum fuel efficiency and performance. It uniquely features an electronic control panel for ease-of-use and offers low-cost remote control upgrades due to the plug and play characteristics of the unit.
The lightweight machine features large capacity jetting and filling reels, unloader valve system and anti-freeze valve as standard. Installation and handling have been made easy due to the inclusion of dedicated lifting points, and its compact dimensions mean the unit can be fitted in small commercial vans with room for additional tools and equipment.
PRODUCT SPECIFICATIONS
| Pipework Diameter | Up to 200mm |
| Performance | 3000PSI @ 8GPM (200 BAR @ 36LPM) |
| Standard Water Tank Capacity | 250 Litres (55 Gallon) |
| Engine | Briggs and Stratton Vanguard EFi V-Twin Petrol Engine |
| HP Pump Type | Triplex Plunger Pump |
| Engine Cooling | Air Cooled |
| Run Dry Protection | Standard |
| Frost Protection | Anti-Freeze Valve |
| HP Reel | Manual |
| Hose Guidance | Not Included |
| Hose | 60 Metres 3/8” Jetting Hose (195ft) |
| Reel Arrangement | Fixed Hose Reel |
| Filling Hose | 25M Reel |
| Control Box | Push Button Controls |
| Remote Control | Optional 5 Channel Radio or Foot Pedal Systems |
| Construction | Compact Mild Steel Construction, Powder Coated |
| Included Accessories | 2 Standard Nozzles, User Manual, Leader Hose |
| Approximate Dry Weight | 250KG |
| Approximate Max Weight | 500KG (with standard 250L water tank) |
| Machine Dimensions | 1050mm D x 1130 W x 1020 H (with standard water tank) |
| Fuel Tank Capacity | 15 Litres |
| Base Vehicle Suitability | Ford Transit Connect, Vauxhall Combo/Vivaro, Mercedes Benz Citan, VW Caddy/Transporter, Renault |
