Bespoke Products

Bespoke Jetter

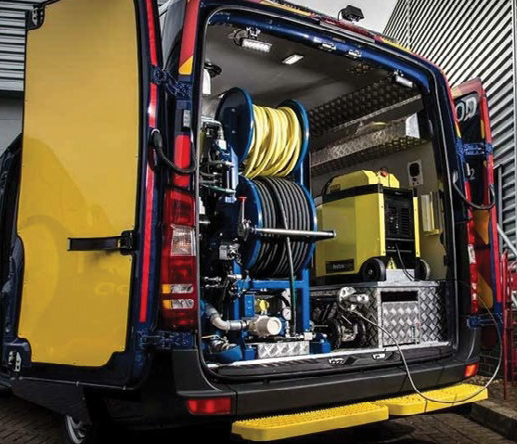

Andy Guest’s team of specialist engineers and technicians undertake a range of projects to customise standard van-pack drain jetters to meet clients’ requirements. Our standard 2,3 and 4-Series stack jetting systems are compact, lightweight and have been specially developed for multipurpose CCTV/lining vehicles and smaller commercial drainage vans.

All our drain jetters are manufactured in-house, giving us the flexibility to produce completely bespoke systems for our customers.

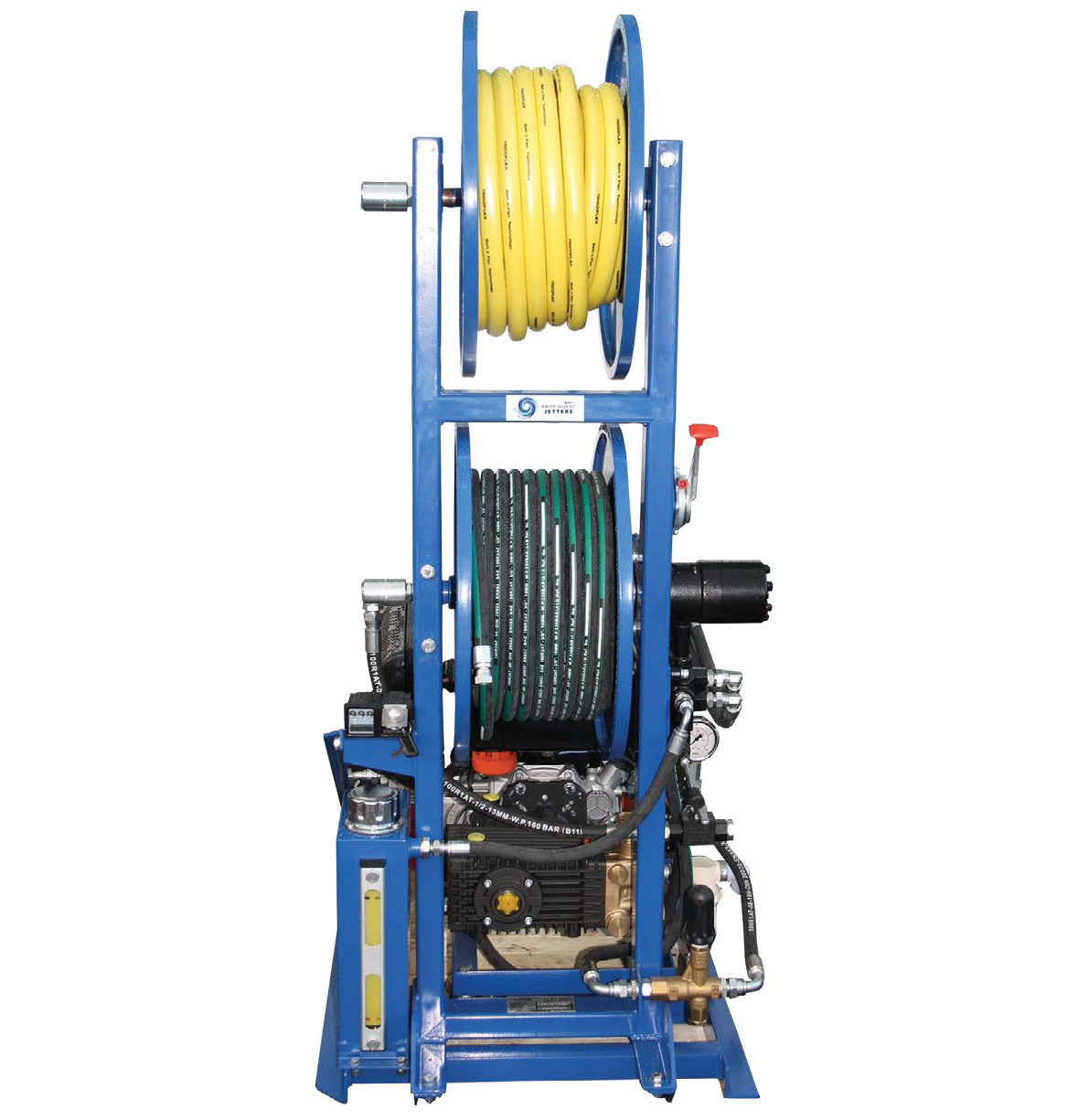

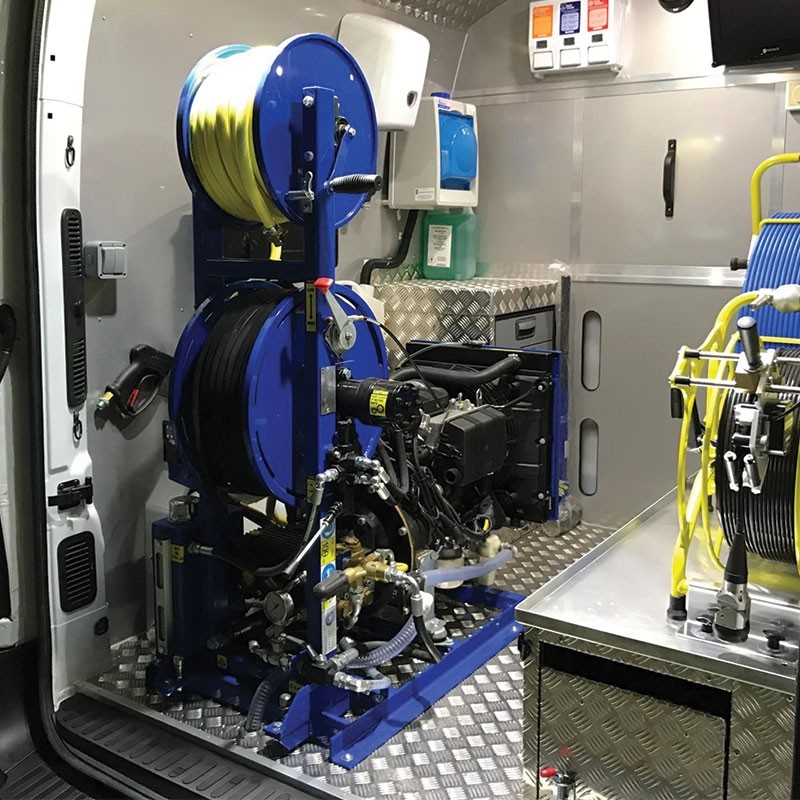

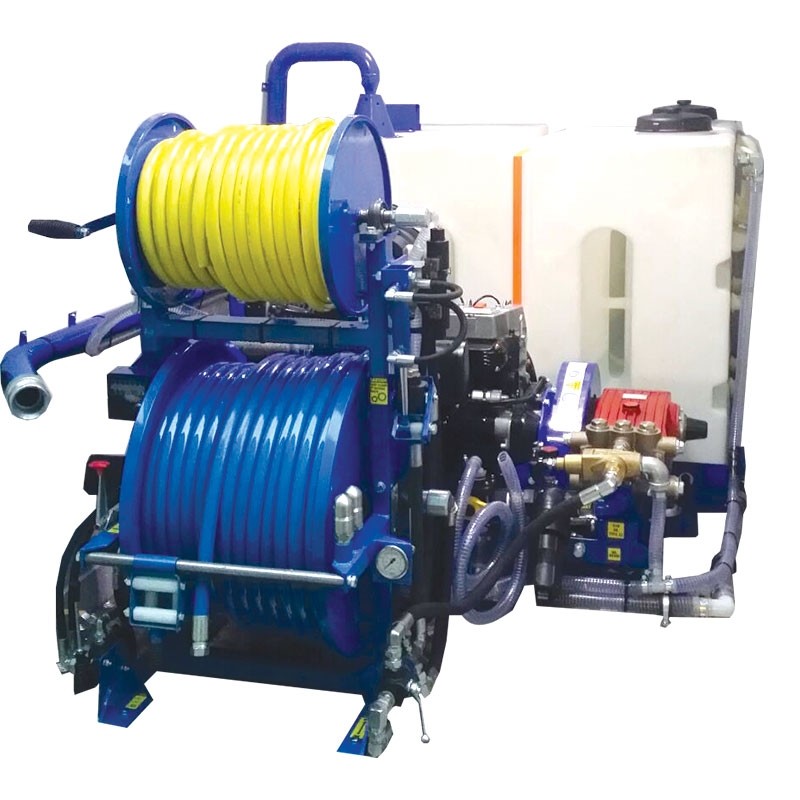

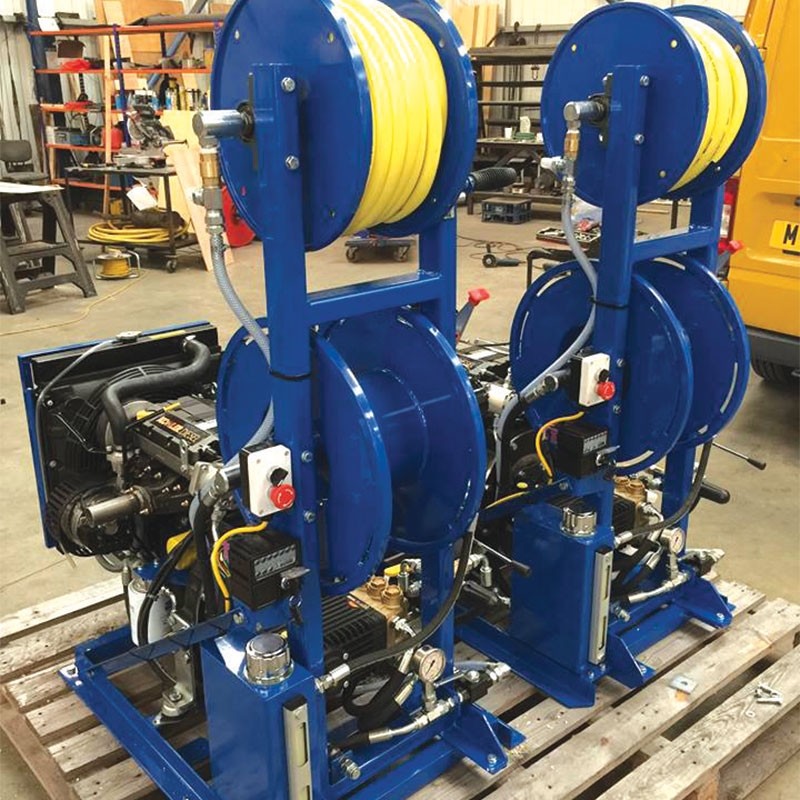

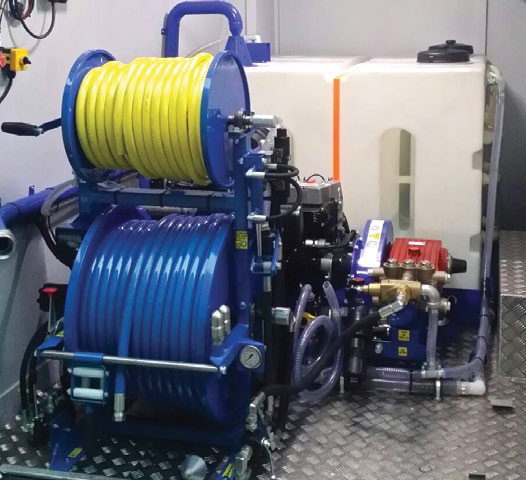

BESPOKE JETTING MACHINES

  • Stack and Split Van-Pack Systems
  • Low Weight Units + Improved Weight Distribution
  • Remotely Mounted Water Tanks
  • Hydraulic Drive HP Reel
  • Optional 5 Channel Radio Remote

STACK SYSTEMS

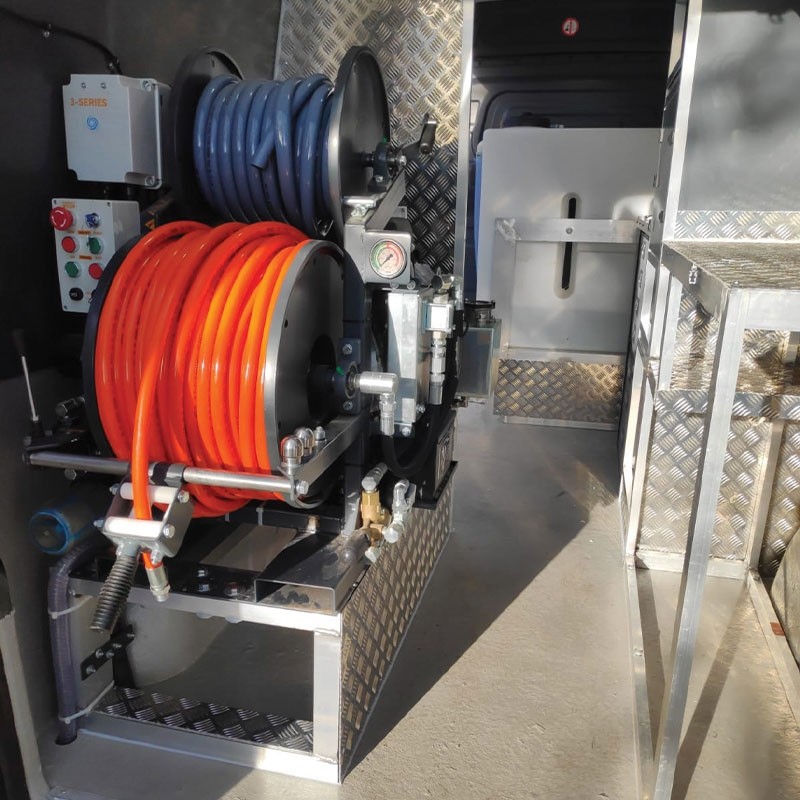

3-SERIES STACK (PETROL)

Our compact and lightweight 3-Series Stack systems have been developed for multipurpose CCTV/lining vehicles and smaller commercial vans. The systems offers the same level of performance and specification as a conventional van-pack, while maximising the vehicle access, space and payload.

    • Pipework Diameter: 250 – 300mm
    • 3000psi @ 12GPM (200 BAR @ 54LPM) Petrol
    • Water Tank Capacity: 400 Litres (88 Gallon)
    • Briggs + Stratton Vanguard EFi V-Twin Petrol – 37HP (28kW) Engine
    • HP Pump Type: Triplex Plunger Pump
    • Air-Cooled Engine
    • Dry Weight: 300Kg
    • Water Tanks can be mounted separately
    • Electronic control panel

3-series-stack

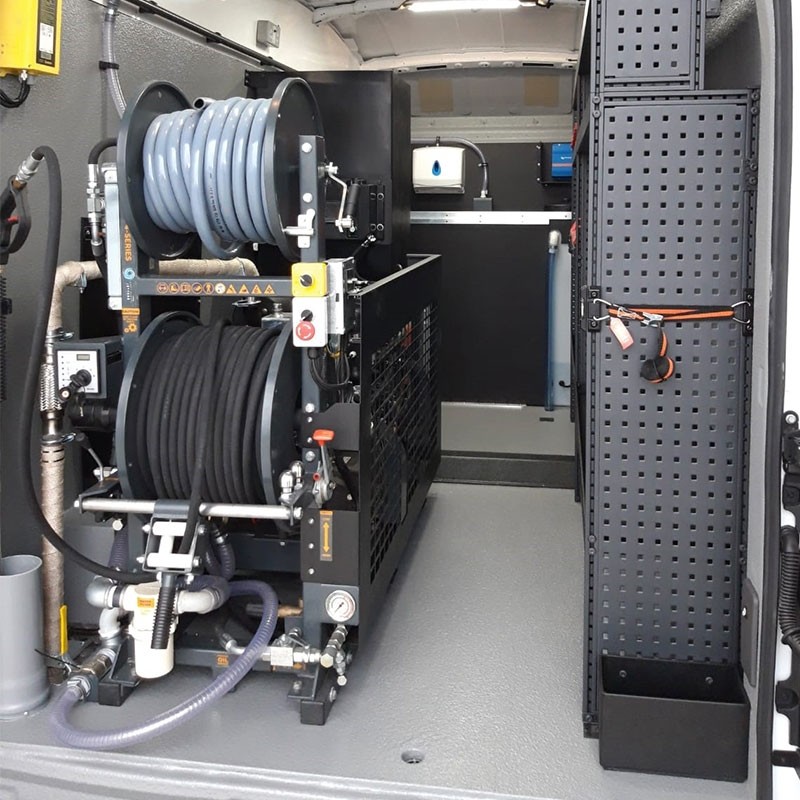

4-SERIES STACK

Our 4-Series Stack units are powered by fuel-efficient, low-noise 37HP engines, and ideally suited to everyday use on sewer and drainage systems. New units are supplied with a twin-wire lightweight hose and a set of nozzles.

    • Pipework Diameter: < 350mm
    • 3625psi @ 13GPM (250BAR @ 60LPM) Diesel
    • Water Tank Capacity: 400 Litres (88 Gallon)
    • Yanmar 3TNV Low Noise 3 Cylinder Diesel – 37HP (28kW) Engine
    • Triplex High-Pressure Pump
    • Water-Cooled Engine
    • Dry Weight: 495KG
    • Water Tanks can be mounted separately

4-series-stack



  • Our non-standard configuration, high-pressure jetting systems have been designed to maximise the access, space and payload of your vehicle.
  • Stack jetting systems are designed for dual purpose CCTV and Lining vehicles.
  • Stack systems offer the same level of performance and specification as conventional Van-Pack systems.
  • At less than half the width of standard Van-Packs, other equipment can be mounted alongside.
  • Separate water tanks can be remotely mounted for improved weight distribution and space optimisation.
  • Several performance options are available with dry weight as low as 360KG.
  • Popular upgrades include diesel engine, radio remote, hard-wired foot pedal and lightweight jetting hose.

JETTER CUSTOMISATIONS

  • We offer a range of customisations for clients wishing to enhance
  • or reconfigure their standard jetting unit. These include:
  • Re-framing in steel or lightweight aluminium
  • Acoustic covers to reduce engine noise
  • Reconfigured jetter mountings
  • Reductions in unit size, weight and overall footprint
