V-Pack 3 Series

Andy Guest 3 Series

The 3-Series is a petrol-driven jetter that offers the perfect balance of performance and functionality within a compact and lightweight frame.

Suitable for use in sewers and drains up to 300mm, the 3-Series is a Stage V emissions-compliant machine utilising a modern, powerful engine that is lighter, quieter and more cost-effective to operate than diesel-engine machines with similar characteristics. Until recent years, this type of jetter specification and level of performance was unavailable to operators with smaller commercial vehicles.

While it’s true that petrol engines run hotter than diesels, and there remains some scepticism about them in the industry, the 3-Series dissipates residual engine heat quickly. The new EFI engine also has a better torque curve, which maximises performance and efficiency, and the engine management system improves diagnostic capabilities and allows for engine remapping if required.

The 3-Series is feature-rich and includes an electronic push-button control panel for ease of operation. Due to its compact size, the 3-Series can be installed into almost any commercial vehicle.

With an industry-standard performance of 3000PSI @ 12GPM, the 3-Series more than meets the demands of the professional contractor, and is also designed for single user operation through the use of a 5-Channel Radio Remote Control. Stack and split system arrangements are also available.

PRODUCT SPECIFICATIONS

Pipework Diameter 250 – 300mm
Performance 3000psi @ 12GPM (200 BAR @ 54LPM)*
Standard Water Tank Capacity 400 Litres (88 Gallon)
Engine Briggs and Stratton Vanguard EFi V-Twin Petrol Engine
HP Pump Type Triplex Plunger Pump
Engine Cooling Air Cooled
Run Dry Protection Standard
Frost Protection Anti-Freeze Valve
HP Reel Hydraulic Drive
Hose Guidance Not Included (Optional)
Hose 90 Metres ½” Lightweight Single-Wire Jetting Hose
Reel Arrangement Fixed Hose Reel
Filling Hose 25 Metres
Control Box Electronic Control Panel
Remote Control 5 Channel Radio Remote System or Foot Pedal
Construction Compact Mild Steel, Shot Blasted, Powder Coated
Included Accessories 2 Standard Nozzles, User Manual, Leader Hose, Lightweight Engine and Pump Cover
Approximate Dry Weight 335KG
Approximate Max Weight 735KG (with standard water tank)

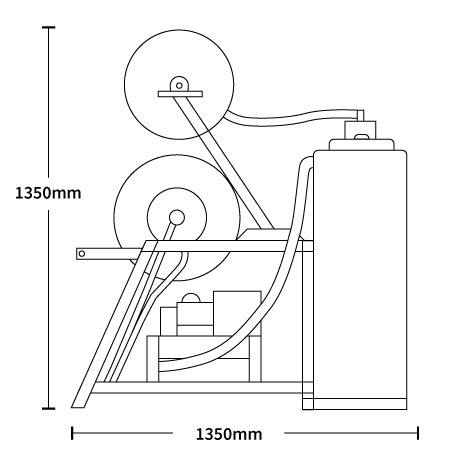

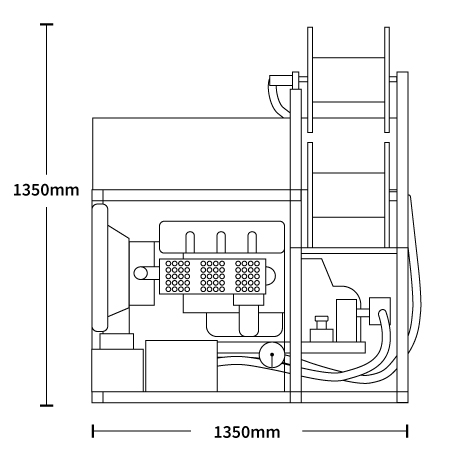

Machine Dimensions 1220 D x 1250 W x 1350 H (with standard water tank)
Fuel Tank Capacity 20 Litres
Base Vehicle Suitability Ford Transit Connect, Vauxhall Combo/Vivaro, Mercedes Benz Citan, VW Caddy/Transporter, Renault Trafic, Peugeot Expert

DOWNLOAD BROCHURE
